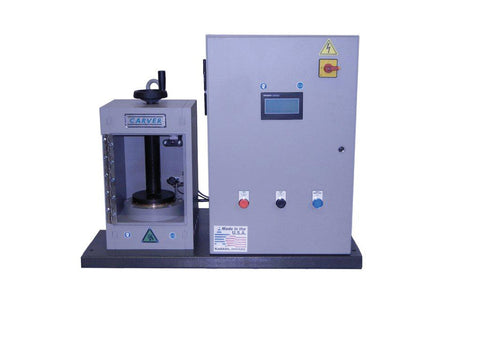

Carver Model 3887CE-SD is a two-column, automatic, hydraulic laboratory press primarily for KBr pellet pressing.
- Maximum applied load 25 US tons.
- Touchscreen interface controller with display for pressure, speed, dwell time setting and press status
- Ten recipe storage of pressure and time settings
- Integral 0.01seconds to 99.9 hours timer
- Automatic platen opening on cycle completion
- Adjustable end of cycle alarm
- Units of measurement setting for kg, lbs or tons
- Built-in safety enclosure with transparent door
With 125mm diameter, circular unheated plates. Supplied complete with 13mm die. Ram stroke: 25mm; daylight opening: 38 to 184mm. Overall 605 x 250 x 600mm W x D x H. Weight, net: 120kg. For 220V 50/60Hz single phase supplies.
