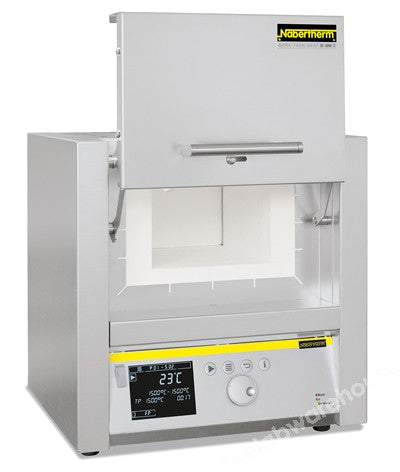

- Maximum temperature 1200˚C
- Ceramic heating plates with integral heating elements protected against fumes and splashes
- Durable, vacuum cured, ceramic fibre lining with dual-walled housing giving low external temperatures
- Stainless steel outer housing
- Parallel hinge, lift door keeps hot face away from operator
- Adjustable air inlet integrated into door with exhaust air outlet at rear of chamber
- Overtemperature safety cut-out
- B510 controller: 5 programme, 4 segment, time and temperature setting with status alarm, delayed start function, autotune and data output interface
| Model | LT9/12/B510 | |
| Temp. Max./Continuous | oC | 1200/1150 |
| Heating time | mins | 90 |
| Volume | litres | 9 |
| Dimensions, internal (external) | height, mm | 170 (570) |
| width, mm | 230 (480) | |
| length, mm | 240 (550) | |
| Weight | kg | 45 |
| Rating, max. | kW | 3.0 |
With ceramic heating plates with integral heating elements. For 230V 50Hz single phase supplies.
Safety Note - please check before ordering that the supply current is suitable for the power rating of the furnace.
