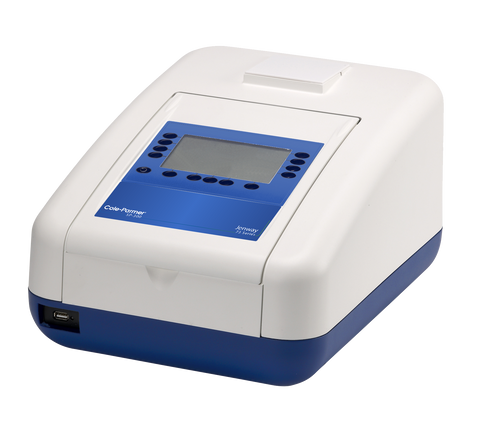

Cole-Parmer SP-350-UV
- Scanning UV, range 198 to 1000nm, Quantitation and Kinetics modes
- 5nm spectral bandwidth
- GLP compliant, with logging of time, date and user i.d., instrument and method locks, 240 method memory storage
- Sealed control panel and display built into hinged lid to avoid splashes and spillages when sample loading
- Analogue, RS232 and front positioned USB outputs provided
- Large, graphics display with icon-driven, (non-textual) operation using soft-key navigation
- Compact design minimises bench space required
- Accessory printer-module available
Supplied with 10mm cell holder, 100 x 10mm disposable cuvettes, downloading/analysis software CD-ROM, interface cable, 2GB USB memory stick and instructions. With universal power supply for 100-240V 50/60Hz single phase supplies.
| Model | SP-350-UV | |
| Wavelength range | nm | 198 to 1000 |
| Bandwidth | nm | 5 |
| Wavelength accuracy | nm | ±2 |
| Light source | Pulsed xenon | |
| Repeatability | nm | ±0.5 |
| Photometric ranges | Transmittance | 0 to 199.9% x 0.1% resolution ±1% accuracy |
| Absorbance | -0.300 to 2.500A x 1A resolution ±0.1 accuracy (at 1.00) | |
| Concentration modes | range | -300 to 9999 |
| resolution | Selectable 1/0.1/0.01/0.001 | |
| calibration | Blank and 1 factor/standard | |
| factor | 1 to 10,000 | |
| standard | 1 to 1000 | |
| Quantitation modes | range | -300 to 9999 |
| resolution | Selectable 1/0.1/0.01/0.001 | |
| calibration | Blank and up to 6 standards | |
| curve fit | Quadratic, linear (and through zero), interpolate | |
| Kinetics modes | time, secs | 2 to 9999 |
| calibration | Blank and 1 factor/standard | |
| resolution | Selectable 1/0.1/0.01/0.001 | |
| analysis | conc. rate of change, initial and final abs. or % trans. | |
| Scanning modes | interval, nm | Selectable 1/2/5 |
| analysis | ABS, %T, peak and valleys | |
| Outputs | Analogue, RS232, USB | |
| Dimensions H x W x D | mm | 220 x 275 x 400 |
| Weight | kg | 6 |
