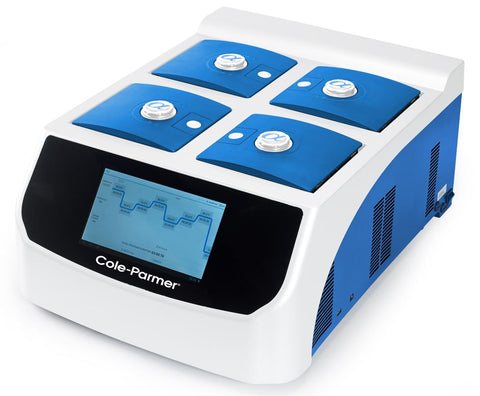

Cole-Parmer PCR-300 models are convenient, gradient thermocyclers with numerous applications in molecular biology and diagnostic laboratories.
- High definition, touchscreen operation with Android-driven interface
- Automated protocol optimisation with programme wizard
- Remote operation/monitoring available allowing alarm, time and system health checks via the user's phone
- USB user login sets all defaults to the individual user's settings
- Regularly-used default programmes can be created, locked and protected
- Units for 1, 2 and 4 block combinations with 96-well or 384-well configuration
- Gradients run across 12 or 16 columns on 96-well or 384-well plates respectively, using 8 individual Peltier heat sources
- Heated lid with temperature and pressure adjustment
All models include a USB output to transfer programmes and temperature logs between instruments or the user’s computer and act as a user login port key using any accessory USB drive.
General specifications:
Model | PCR-300-Q384 | |
Block Format | 4 x 384-well | |
Temperature range, block | ºC | 10 to 100 |
Block uniformity at 55ºC | ±ºC | <0.3 |
Gradient Minimum/Maximum | ºC | 1/29 |
Gradient accuracy | ±ºC | 0.25 |
Maximum number of programmes | 1000 | |
Selectable heated lid temperature* | ºC | 35 to 115 or off |
Auto restart on power failure? | yes | |
Peltier elements per block | 8 | |
Data/network interface | USB | |
Overall D x W x H | mm | 700 x 535 x 335 |
Weight | kg | 47 |
* The heated lid will only come on if block temperature is set above 35°C.
For 100 to 230V 50/60Hz single phase supplies.
