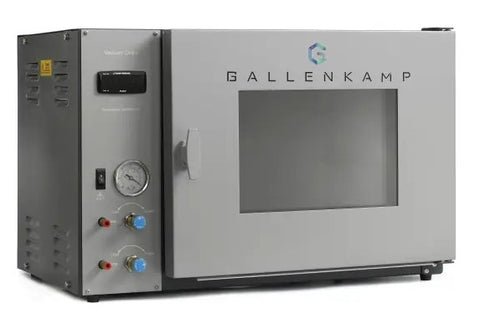

The FiStreem™ vacuum oven offers many features that provide convenience and easy operation.
General specifications:
- Rectangular light alloy chamber, capacity 31 litres
- Temperature range +30 to +200°C
- PID controller with overtemperature alarm indicator
- Large door window with polycarbonate safety shield allows unobstructed viewing of the chamber
- Two valves provided, for vacuum connection and inert/dry air gassing, respectively
- Analogue vacuum gauge included, range 0 to 1000mbar
- Independent, over-temperature safety protection in the event of controller failure
| Usable volume | litres | 31 |
| Temperature range | ºC | +30 to +200 |
| W x D x H, internal external | mm mm | 375 x 310 x 260 650 x 425 x 420 |
| Shelves supplied | 2 | |
| Shelf positions | 3 | |
| Leakage rate | mbar per 24 hours | 10 (4x10-6 mbar/l/s) |
| Inlet and outlet connections for tubing internal diameter | mm | 10 to 12 |
| Power rating | W | 1000 |
| Weight, net | kg | 43 |
With rectangular, light alloy chamber, PID controller, vacuum and exhaust valves and gauge. For 220-240V 50Hz supplies. Supplied without vacuum pump.
